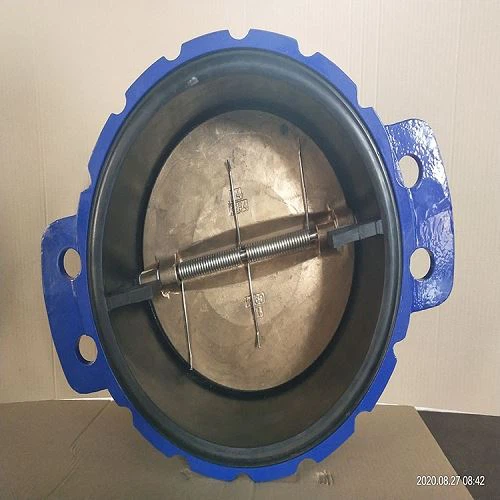

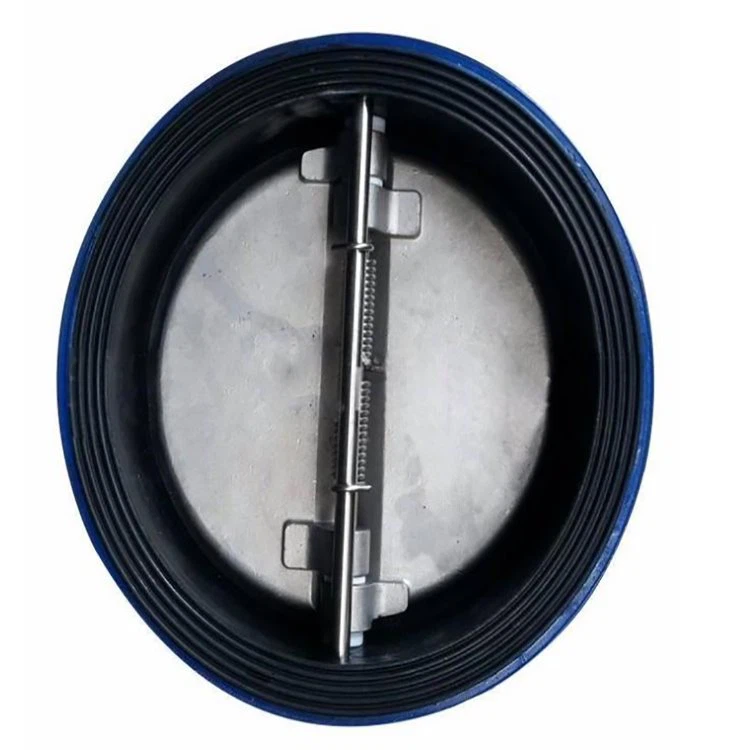

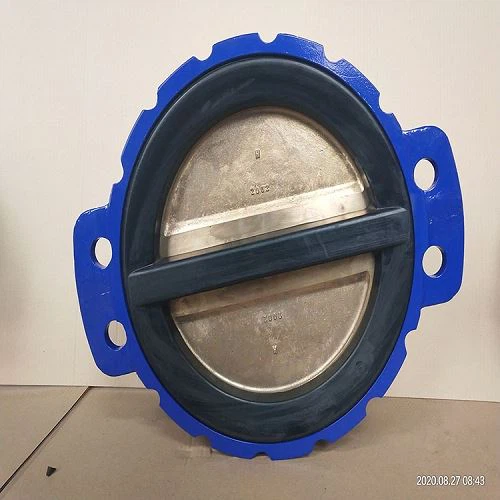

Rubber Lined Dual Plate Check Valve

Introduction:

The full-cover rubber check valve is a kind of automatic valve which depends on the flow of the medium itself and automatically opens and closes the valve disc to prevent the reverse flow of the medium. It belongs to the check valve of the clamping disc type swing type. The product has the characteristics of small volume, wide flow channel, low resistance coefficient and fast closing In order to ensure that each disc to seat the right position, the valve design hinge agencies, in order to have enough plug valve kai xuan space, and make the disc real full contact with the valve seat valve, rubber check valve in the fully open conditions, almost unimpeded fluid pressure, so the pressure drop across the valve is relatively small.

Application:

Suitable for urban, industrial and high-rise building water supply, drainage pipe network.

Description:

Full-cover rubber check valve has wafer type, flange type two commonly used. H77X, H77J full-package rubber check valve is composed of valve body, valve disc, valve stem and spring and other parts, using the clamp connection. Due to the short closing stroke of the disc and spring loading, water hammer phenomenon can be significantly reduced. Because its structure length is shorter than the general check valve, it is more suitable for places with limited installation space.

Specification:
